Kilafors Trailers

We have operated as an official retailer of Kilafors trailers since 2014. We manufacture and assembly timber and energy superstructures on the trailers according to your demands. We also carry out import and commissioning inspections in our own inspection station in cooperation with Kuurnan Autokatsastus Oy.

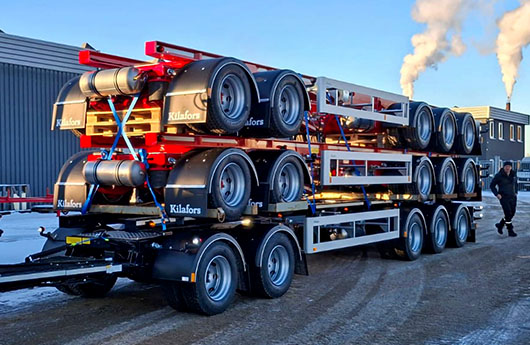

New Kilafors trailer chassis arrives in stock!

New Kilafors Karlavagnen 5 axle timber trailer chassis arrives in stock! Now available in December with choice of colour and timber bunks! Total weight 42000 kg, frame length 10800 mm, wheelbases 1340 mm, 4800 mm, 1340 mm, 1340 mm, 1340 mm, tyres 265/70R19.5, ROR axles, air suspension, disc brakes, axle lift for 2nd, 4th and 5th axles. Ask more information from our sales department! Antti Pikkarainen +358504718404 antti.pikkarainen@riiko.fi

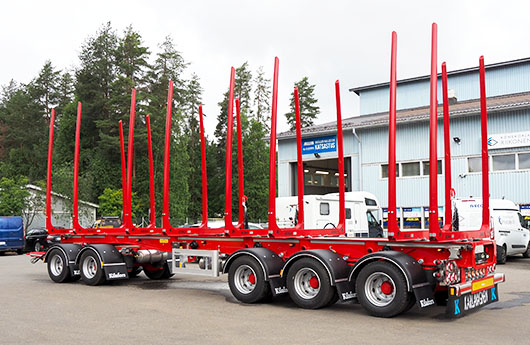

Kilafors Karlavagnen chassis

Kilafors is a top-quality trailer designed for Nordic conditions by the Swedish company Kilafors Industri AB. Kilafors is suitable for demanding forest and road transport. The frame rolled from the I-beams of Kilafors trailer, offers a very durable structure, low unladen weight and a long service life. The frame is made of rolled SSAB steel and is available in two models: model 330 with a total weight of 38 tonnes and a more robust frame, and model 360 with a total weight of 45 tonnes. The frame is solid and very stable, so it can withstand strong swaying and heavy loads.

Kilafors Karlavagnen technical information

Net weight: From about 5,800 kg
Length: 9,000 to 12,000 mm
Tires: 265 to 285/70 × 19,5 ”or 275/70 × 22,5”
Suspension: Air or parabolic suspension
Axles: BPW or ROR
Hydraulics: The length of the cylinder is selected according to the trailer
Paint finishing: 2-component incl. clear lacquer
Lighting: According to customer's request
Bunks: According to the customer's request

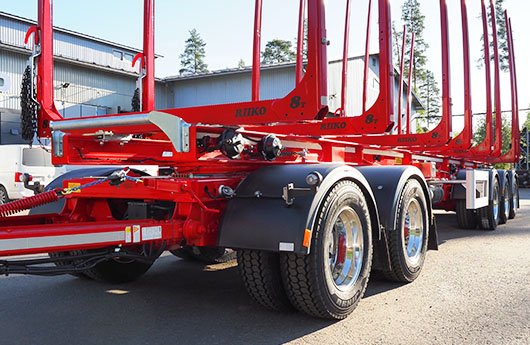

Kilafors timber trailer delivery

Kilafors Karlavagnen 5 axle timber trailer with RIIKO® 8T timber bunks. Bunk height 3250 mm, weight 7900 kg, frame length 10800 mm, wheelbases 1340 mm, 4800 mm, 1340 mm, 1340 mm, fixed bogie, VBG drawbar, tires 265/70R19.5, steel rims 7.50×19.5, ROR axles with disc brakes, ROR air suspension, Idem Telematics tyre pressure control, axle lift for 2nd, 4th and 5th axles, RIIKO® 8T timber bunks, RIIKO® pneumatic load tighteners with chain, load binding chain brackets, hydraulic transfer for bunks, lights and light boxes, P-Light Midi, rear and side underrun protection, white full-length rear mudflap, reinforced turntable protection, front carriage aluminium cover plates, centralized lubrication of the turntable, galvanized lifting iron, white mudguards and mudflaps.

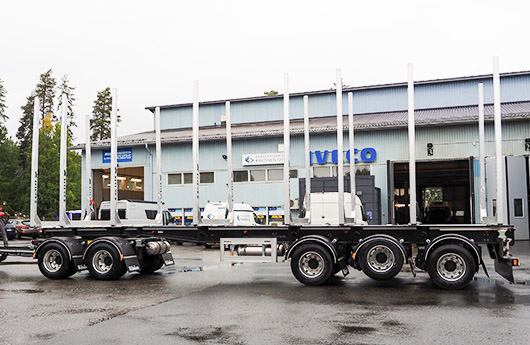

Kilafors timber trailer delivery

Kilafors Karlavagnen 5 axle timber trailer. Frame length 10800 mm; wheelbases 1340 mm, 4800 mm, 1340 mm, 1340 mm; fixed bogie; VBG drawbar; tires 265/70R19.5; steel rims 7.50×19.5; ROR axles with disc brakes; ROR air suspension; Idem Telematics tyre pressure control; axle lift for 2nd, 4th and 5th axles; RIIKO® 8T timber bunks; RIIKO® pneumatic load tighteners with chain, load binding chain brackets; hydraulic transfer for bunks; lights and light boxes; P-Light Midi; rear and side underrun protection; full-length rear mudflap; reinforced turntable protection; front carriage aluminium cover plates; centralized lubrication of the turntable; galvanized lifting iron; mudguards and mudflaps.

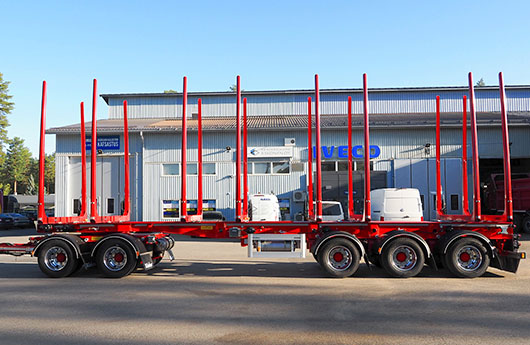

Kilafors timber trailer delivery

Delivered 5 axle Kilafors Karlavagnen timber trailer. Total length 13415 mm; load body length 10800 mm; weight 8650 kg; total weight 42000 kg; axle weights 9000 kg; 9000 kg; 9000 kg; 9000 kg; 9000 kg; wheelbases 1340 mm, 4800 mm, 1340 mm, 1340 mm; tires 275/70R22.5; disc brakes; air suspension; liftable axles 2,4 and 5; timber bunk transfer; BEAR XO 10 timber bunks with integrated load tighteners.

Kilafors energy trailer delivery

RIIKO® Energy Superstructures and 5 axle Kilafors trailer chassis. The capacity of the energy box in the trailer approx. 64–100 m³. Moving the rear box with crane-operated hydraulic cylinder. Box dimensions: 8100-12700 mm x 3200 mm x 2600 mm. Floor 5 mm and walls 3 mm. Drain hatch on the left side, sliding underrun protection at the back. Trailer frame length 10800 mm, wheelbase 4400 mm, VBG drawbar, tires 265/70R19.5, ROR disc brake axles, ROR Bevoguard tire pressure monitoring, liftable axles 4th and 5th, Alcoa aluminium rims, Wabco EBS brakes, P-light Midi and VBG 17 light plug.

Kilafors energy trailer delivery

RIIKO® Energy Superstructures and 5 axle Kilafors trailer chassis. The capacity of the energy box in the trailer approx. 64–100 m³. Moving the rear box with crane-operated hydraulic cylinder. Box dimensions: 8100-12700 mm x 3200 mm x 2600 mm. Floor 5 mm and walls 3 mm. Drain hatch on the left side, sliding underrun guard at the back. Trailer frame length 10800 mm, wheelbase 4400 mm, Trako drawbar, tires 265/70R19.5, ROR disc brake axles, liftable axles 4th and 5th, Alcoa aluminium rims, Wabco EBS brakes, P-light Midi and VBG 14 light plug.

Financing

Konekorjaamo Riikonen Oy is a partner company of Rahoitusturva. Rahoitusturva is a Finnish company specializing in corporate financial services, which offers our business customers flexible payment methods and financing options for products and services. Rahoitusturva services work quickly and effortlessly through online applications.
